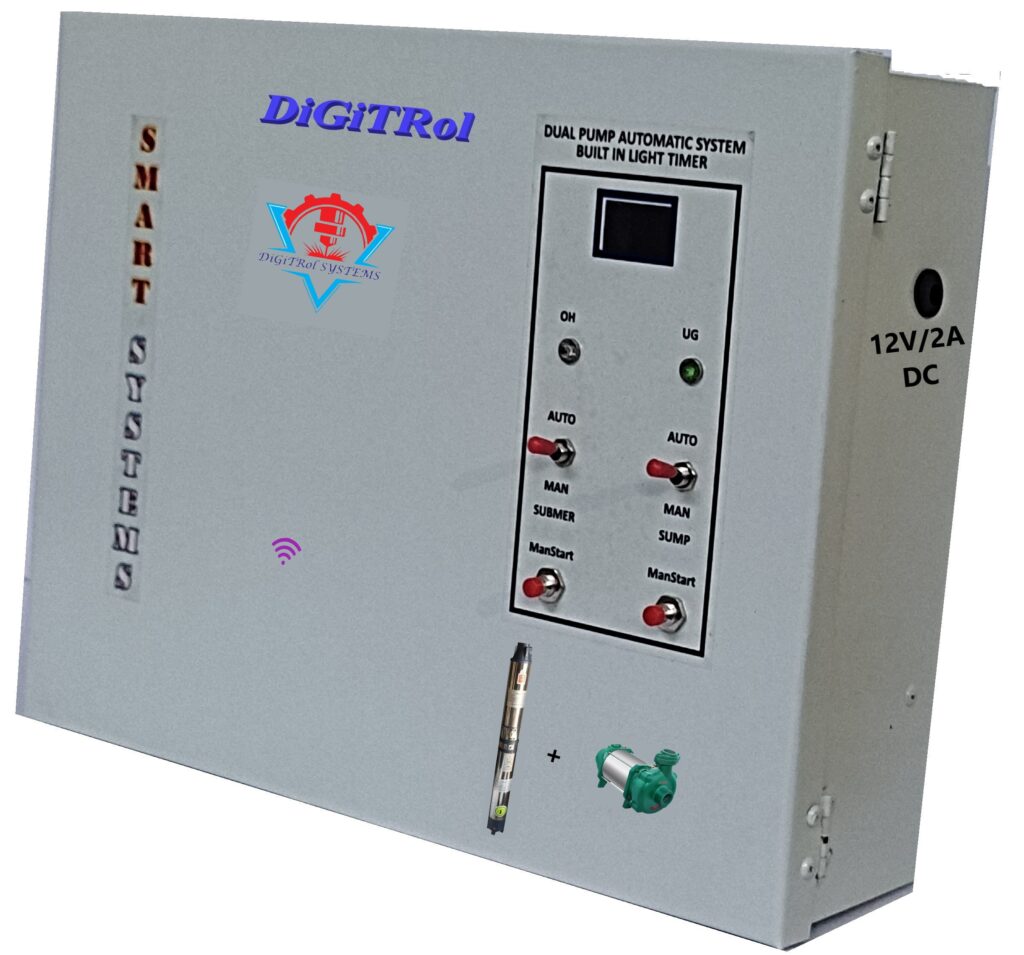

Microcontroller based Integrated Automation System

2 PUMPS (BoreWell and Sump)+

Light timer Dawn & Dusk + Door Lock

Fault Tolerant Panel with Dry Run & Overload Protection

(Support up to 3HP Submersible pump programmable**)

OLED Digital Display

Wi-Fi Enabled with Mobile Control

Fully Automatic with Manual Override

Calendar Clock

Volts & Amps Display

1 no LIGHT Timer Dawn & Dusk

1 no DOOR LOCK* ( KeyLess Entry System)

1 no AC ON / OFF*

Smart Phone Control

For 1 Overhead Tank & 1 Sump (Under Ground Tank)

DRY RUN and OVER LOAD Protection for 2 pumps

OVERVOLTAGE and LOW VOLTAGE Protection

Sound annunciator for pumps and fault condition

Pumps Runtime display in minutes.

AI based control & Event reporting by E-mail**

ONLY ALL IN ONE PANEL in all over

Fully Automatic Operation & Fault Tolerant sequence:

Both Pumps Auto mode selector switches positioned Upward i.e. Auto mode.

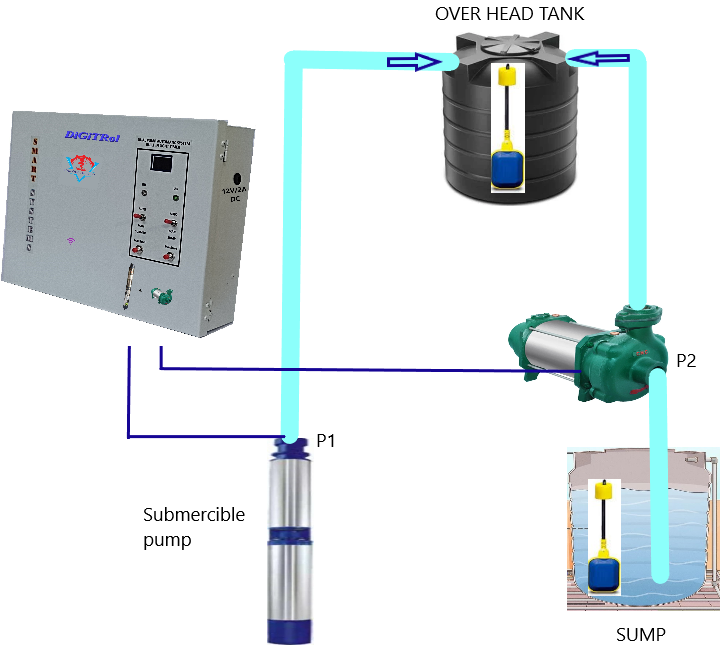

System will check the sump water level, if its ok then sump pump Will pump water to overhead tank until the tank water level full or the set limit by Float Switch. If water in the sump gets below the set low level (i.e., empty) by float switch then it gets switched off, to fill the overhead tank the system will switch on the submersible pump until the Overhead (OH) tank gets Fill.

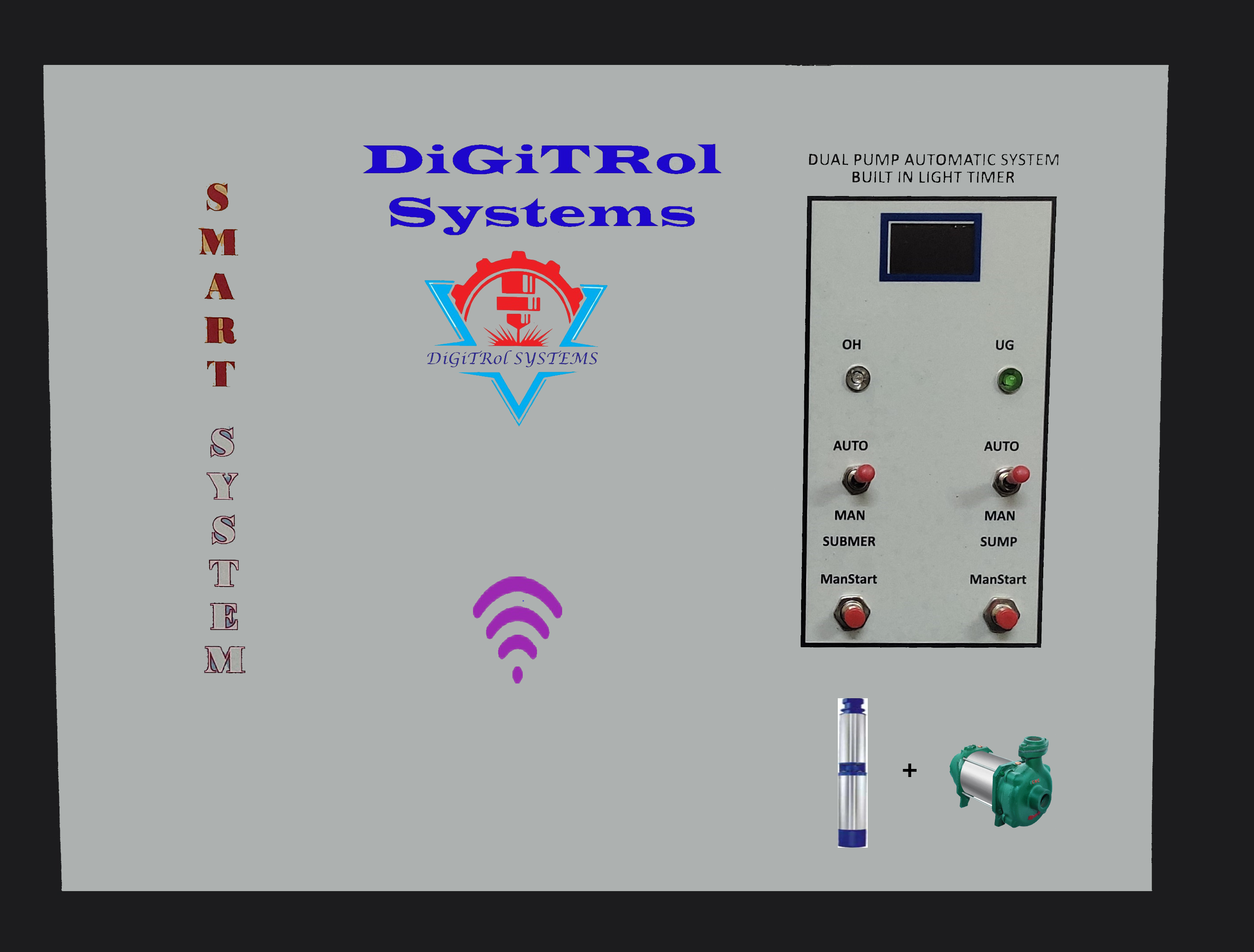

Further to fully automatic operation of the pumps, we can control each pump manually by Man Start push switch provided on the front panel for Submersible pump (P1) and Sump pump (P2).

Fault Tolerant Operation: Only panel which provides industrial Grade Functionality.

During the operation of each pump if
there is problem (Dry run or Overload fault or wiring issues) with the either
pump the system will switch to other pump after trying 3 attempts with 2
minutes interval.

Smart phone Control: We can control & check status of the Pumps, light, Door lock and AC (optional) along with Emergency Stop. (Active & Off)

Dawn Dusk light Timer and manual
timer:  DiGiTRol Smart Panel also provide Dawn Dusk Light Timer for
automatic light on/off control which gets the time from Wi-Fi & Internet.
In manual timer mode you can set the on-time and off-time Manually to override the Auto mode.

Door Lock/ Keyless entry*: (optional)

DiGiTRol Smart Panel Also Provide Keyless entry system for one Electric lock.

Lock can be operated by Smart Phone to lock and unlock for main Gate or parking etc. Needs Wi-Fi, internet connectivity not required.

Single phase applications:

Submersible pump up to 3HP and Pump2 for Sump up to 1.5HP

** *3 phase Panel on Special Order
